Paylite Advance Cheque Setup

Paylite Advance Cheque Setup

Paylite is a limited functionality version of our Accounting Software.

Advance Cheque settings allow you to manually adjust the print out.

if the entire printout is out of alignment you will use the printer displacement settings to shift the print out.
if only some parts of the printout  are not alignment you will use the Advance cheque settings.

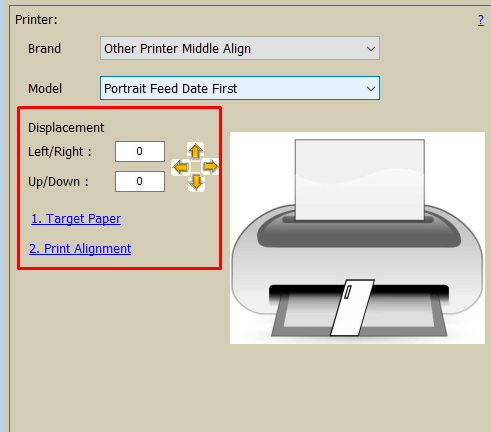

Printer Settings.



Displacement section:
use the arrow buttons to move the printout.
eg.
if the print out is too low, click the up arrow to move the printout up.
You can use a trial and error method to make adjustments.  most users will white out the previous print so that you can reuse the same paper for multiple test.

An alternative method to get what are the displacement number is to use
Target Paper and Print alignment are use to help manually align the printer.
  1. print the target paper on A4 paper.
  2. cut out the target paper to make 3 cheque sized paper.
  3. put the cut target paper into the printer.
  4. print the Print Alignment onto the target paper
  5. the scale on the print out will let you know how much displacement you need.
  6. put the same paper you just printed on back into the printer and printer the  print alignment.
  7. both scales should be close to each other. if they are spaced more than 0.5cm apart, you are not placing the paper correctly in the printer.


Cheque Settings.
Advance cheque Layout is a advance function. The is no additional support for this function.
the function allows you to adjust each field's placement.

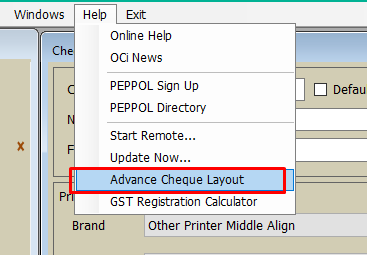

you can only access the Advance cheque layout function when you are in the cheque layout module.

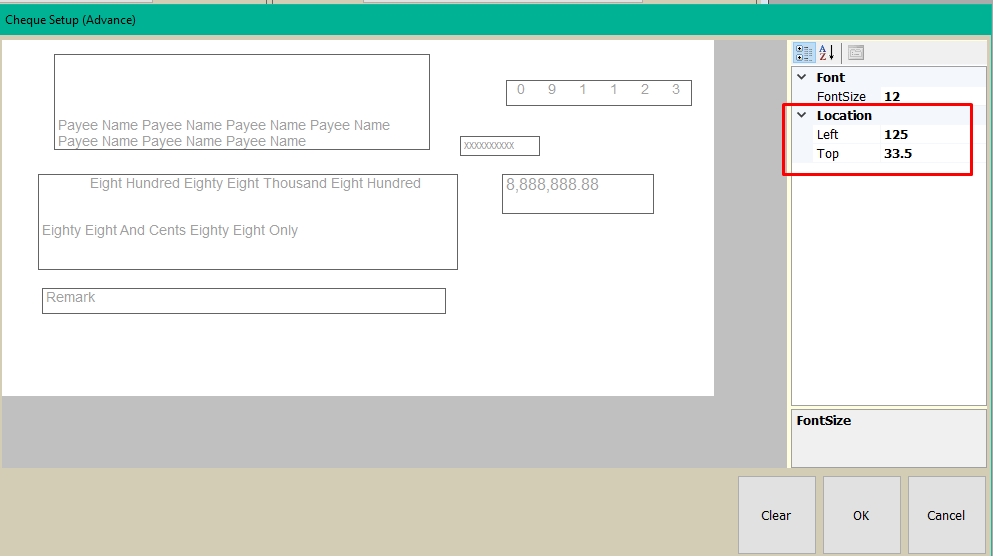

when you enter the cheque setup.
the currency layout will be shown here.
when you click on a field, a properties tab will be shown on the right.


Only adjust the location.
the coordinate system being used has the 0,0 at the top right.
the measurements are in mm.

Left: how far left to move
Top: how far from the top to move

once you have done the setting remember to click ok button to save.
